TMC Series (Sizing Cutter)

Home > Products > Cutting > TMC Series (Sizing Cutter)

Cutting

Rubber/Packing
Wrapping/Packaging Materials
Highly-functional Film
Nonwoven Fabric/Filters
Paper/Stickers
Super Fiber/Apparel

Product Image

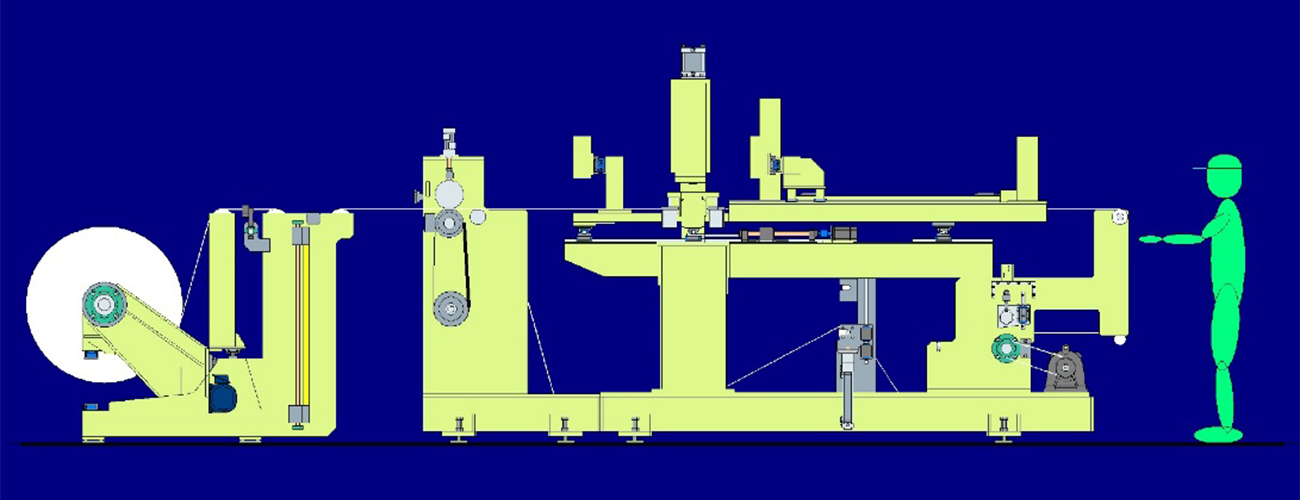

Example System

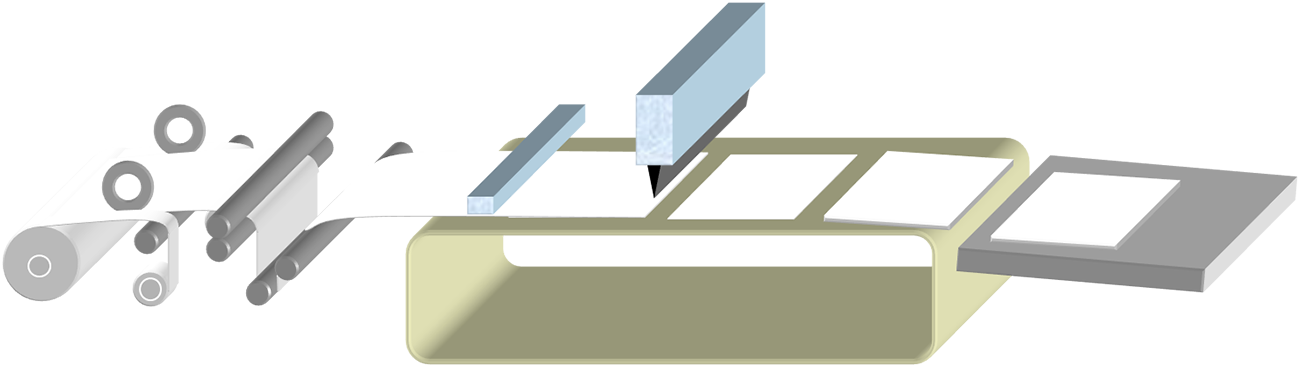

TMC Series (Sizing Cutter) Example System

Main Specifications

Product Video

Main Specifications

Cutting Width: 400 – 2200mm
* We will manufacture the machine according to the customer’s desired size.
Cutting Force: 19.6KN (2t)+
Stroke: 30mm
Feed Mechanism 1: PET Film Endless System
Feed Mechanism 2: Single-board Feeding by Linear Motor
Alignment (Positioning) Unit: MD Direction and θ Direction Correction

Features

Can be combined with various systems such as roll to sheet, sheet to chip, etc.
Servo drive and inverter drive can be selected.

Options

Sheet Feeding Roller
Post-cutting Product-moving Device
Plate Rotating Device
CCD Camera Alignment Device
Inline Support Available for User’s Facilities

Catalog download

Inquiries

Since we can also make appointments for meetings upon request, please feel free to contact us.
