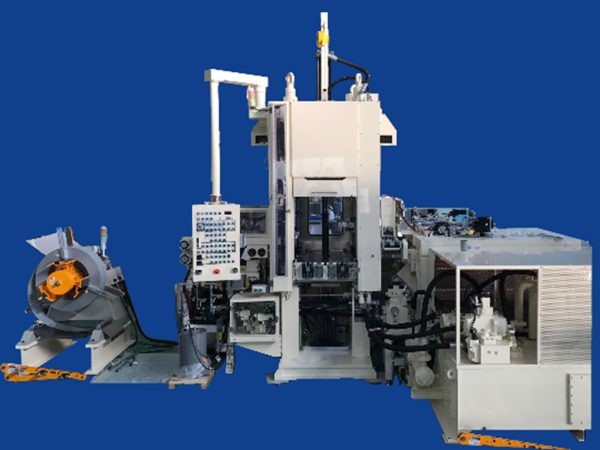

Product Image

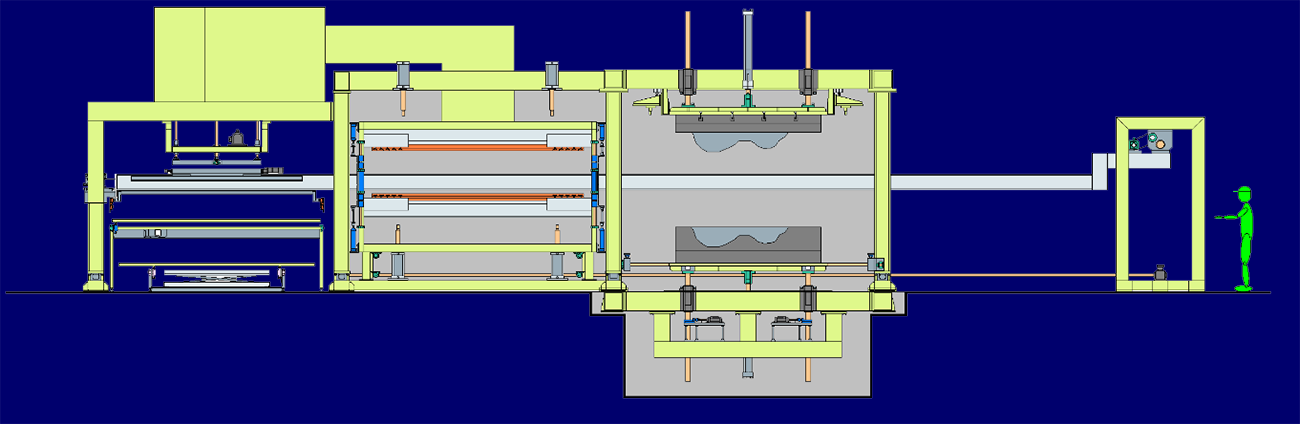

Example System

Final product

• Sound-absorbing/soundproofing material for interiors and material for the trunks of various vehicles
• Vehicle Ceiling Material
• Vehicle Floor
• Wheelhouse

Main Specifications

Model

SFDC−2500×1500−150T

Effective Forming Area

(W) 2500× (L) 1500mm

Press Pressure

150Ton

Hydraulic Motor

37kw

Stroke

1000mm

Open Height

1300mm

Lowering Speed

300mm/sec – 15mm/sec (proportional flow rate control)

Lifting Speed

300mm/sec

Features

• Highly rigid structure with long-lasting high performance.
• Easily operated using a graphic panel.
• High level of safety from using safe photoelectric tubes, fastening pins, etc.

Options

• Die Lifter
• Autoclamp
• Safety Shutter
• Fall Prevention Device
• Platen Position Control Using Linear Scale Control
• Punch (sub-hydraulic) Circuit
• Temperature Control Circuit
• Servo or Hydraulic

Inquiries

Since we can also make appointments for meetings upon request, please feel free to contact us.
